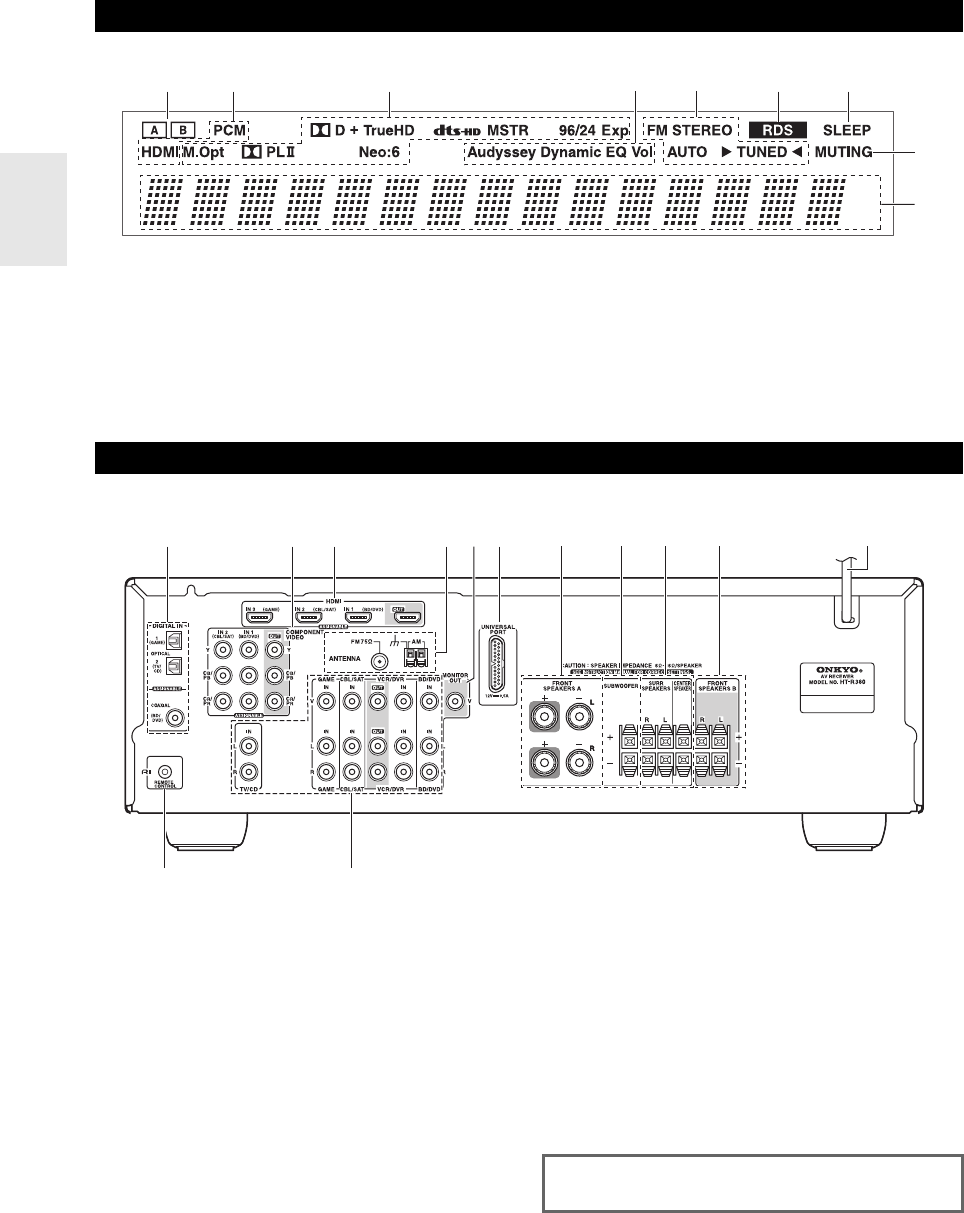

For detailed information, see the pages in parentheses.

a A and B speaker indicators (➔ 11, 22)

b Audio input indicators

c Listening mode and format indicators (➔ 21, 27)

d Audyssey indicators (➔ 34, 38)

e Tuning indicators (➔ 23)

f RDS indicator (excluding North American models)

(➔ 24)

g SLEEP indicator (➔ 22)

h MUTING indicator (➔ 22)

i Message area

a DIGITAL IN COAXIAL and OPTICAL jacks

b COMPONENT VIDEO IN and OUT jacks

c HDMI IN and OUT jacks

d FM ANTENNA jack and AM ANTENNA terminal

e MONITOR OUT V jack

f UNIVERSAL PORT jack

g FRONT SPEAKERS A terminals

h SUBWOOFER terminals

i SPEAKERS terminals

(SURR, CENTER)

j FRONT SPEAKERS B terminals

k Power cord

l u REMOTE CONTROL jack

m Composite video and analog audio jacks

(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,

GAME IN, TV/CD IN)

Display

bcagf

Rear Panel

abc

g jih

See “Connecting the AV Receiver” for connection infor-

mation (➔ 12 to 19).

1 2 3 4 5 6 7 8 9 10 11 12 13 ... 55 56
